G2020 Modular Generators
Based on the G2000 generator technology the G2020 has much higher efficiency and power density while the pulse current und thus load capacitance is increased five-fold compared to the 2000W G2000 generator and 15-fold to the standard G2000.
This modular generators can drive much higher capacitance und thus much larger electrodes as can be found in flow-through applications such as cleaning exhausts from factories or hospitals.
The G2020 uses the same resonant tank characteristics of transformer / cable / load to operate with (quasi-)sinewave waveshapes. This means very efficient, power-saving operation as well as low electromagnetic interference.

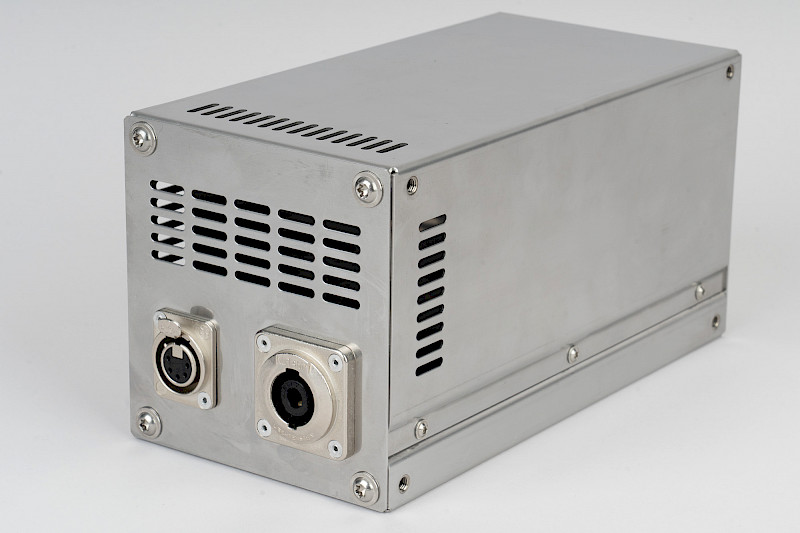

Of course it is short-circuit and open-circuit proof. The high voltage transformer is air-insulated for service-free operation. It has no oil-filled transformer, thus it is usable in cleanrooms.
With the G2020 you are not limited to a preconfigured point of operation. Instead you have full remote control of all parameters via the front panel menu or the CAN bus interface. The G2020 allows for fully flexible setting of all parameters.

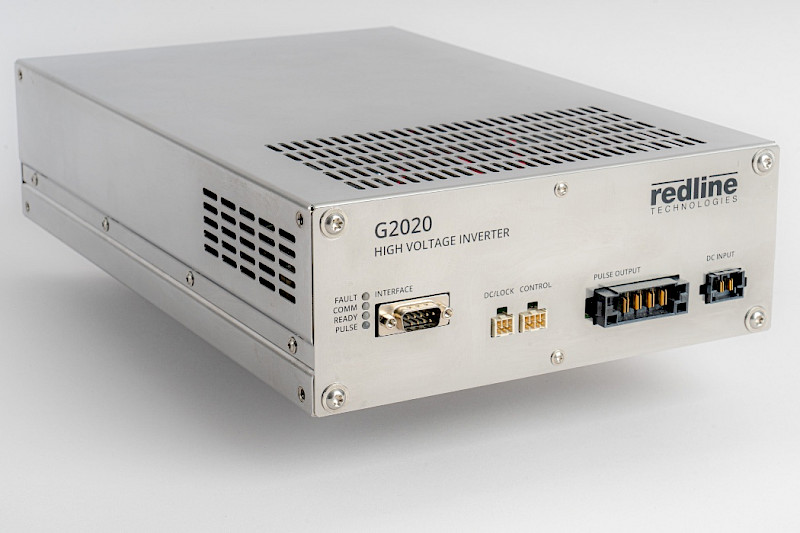

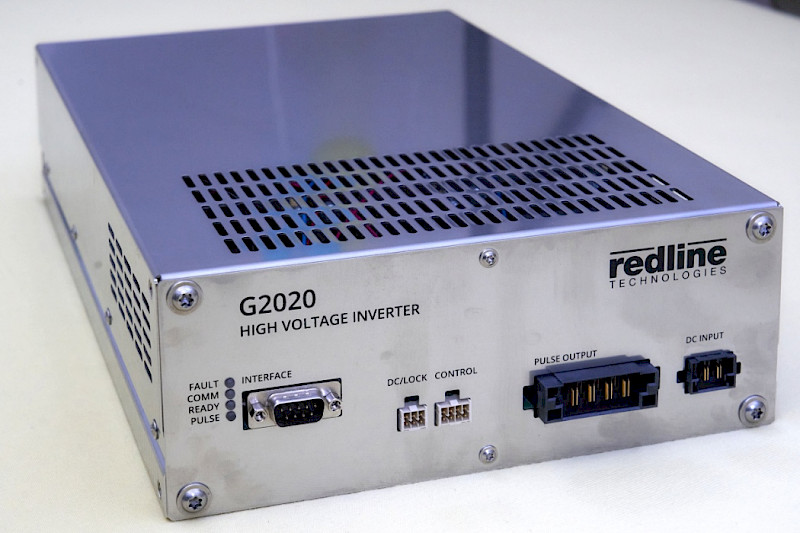

You can tune the G2020 through an extraordinary wide frequency range. The two channels design of the inverter allow paralleling two inverters for higher output power, synchronuous or with phase shift or in bipolar configuration.
Benefits
- modular design for higher power and scaling up
- very efficient
- very high pulse/charge current
- all SiC power cirucit
- plasma generation at normal air pressure
- air-insulated transformer
- wide frequency range
- variable output voltage from 0 to 100%
- short circuit and no-load proof
- full control of all parameters via CAN
Applications
- plasma generation at normal pressure
- barrier discharge
- corona treatment
- detoxication of exhausts
- sterilisation of exhausts
- liquid-free cleansing of surfaces
- conditioning of surfaces
- non-felting treatment of textiles
Shortform Data
| property | value |
| output voltage | 0-20 or 0-10 kVpp |
| output power | 2x 1000 W per module |
| freqency range | 100 Hz - 100 kHz |
| mains voltage | 230 Vac |
| module dimensions | 420 x 230 x 88 mm |
